The Challenge
Design, develop, and deploy a flexible and precise automated test equipment (ATE) system for a 6-channel tunable and a 4-channel fixed-frequency synthesizer.
The Solution
Using the LabVIEW graphical system design environment with NI RF hardware to develop a flexible and high-speed ATE system that uses the latest technology and saves time and money.
About 10X Engineering
10X Engineering LLC delivers innovative engineering solutions for RF product (units, devices, components) quality and line testing, custom-designed ATE system assembly, verification, and development. Our solutions cover a variety of industrial sectors such as RF software-defined radio, radiolocation, spectrum monitoring, and more. For every request we receive, we follow procedures for technical and software functional requirements clarification, RF measurement methodology selection, and hardware configurations. If needed, we take responsibility to prove a concept and demonstrate the flexibility and reliability of our solution.
Problem Background and Solution
Our customer designs and manufactures high-performance RF signal sources using frequency synthesis techniques for generating an output frequency, which support a wide range of commercial and industrial RF applications. The customer’s device under test (DUT) superficial testing includes 10 measurements at three frequencies (the start, middle, and end frequency of the synthesizer’s tunable bandwidth). This requires 5–8 hours of time from a professional engineer. The DUT also supports pulse modulation through two input TTL channels.

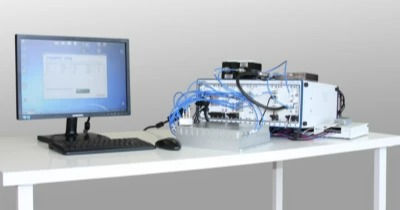

Individual test design, manual assembly, system calibration, and reporting are the most time-consuming procedures for DUT engineers. Our company has developed a 12-channel frequency synthesizer ATE system with testing capabilities from 10 MHz to 6.6 GHz.
List of measurements includes:
Output signal frequency range
Maximum frequency deviation from nominal value
Output power
Frequency setting time
Amplitude modulation depth
Amplitude-frequency response (flatness) in tunable bandwidth
Delay instability of an output RF pulse versus input synchronization pulse
Rising\falling edge delays of an RF pulse versus input IF pulse rising\falling edges
Radio pulse rise and fall time
RF pulse amplitude flatness
Radio pulse amplitude instabilities generated in .5 s phase noise, offsets from the carrier 1 kHz, 5 MHz
Output signal amplitude noise
Spurious emissions, harmonics, and subharmonic

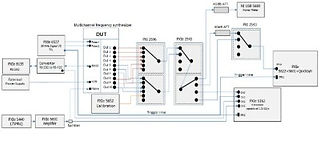

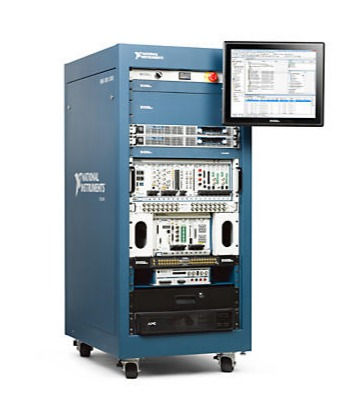

The system requires the following NI equipment:
NI PXIe-6537 module for 2-channel TTL pulse generator
NI PXIe-5162 4-channel oscilloscope
NI PXIe-2543 module
PXI-2596 module
NI PXIe-5652 signal generator to test path calibration
NI PXIe-5450 signal generator for DUT reference frequency (75 MHz)
PXI-5691 amplifier for splitter loss compensation
USB-5680 power meter
NI PXIe-5663 vector signal analyzer (external LO mode) with QuickSyn

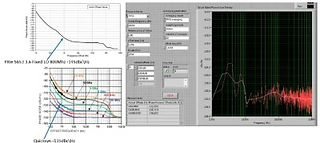

The customer’s synthesizer phase noise was sufficiently low at 120 dB c\Hz in 800 MHz. With our current configuration, users can achieve residual FM specifications, low nonharmonic, and excellent SSB phase noise up to -135 db c\Hz (800 MHz, 10 kHz offset).
Conclusion
It took our team 4.5 months to organize the project, design the ATE system architecture, develop, program, and install the system at the customer site. Using our ATE system, the customer can decrease the testing time by up to 30X and measure 25 parameters for 10-channel and 400 frequency steps (10 MHz to 6.6 GHz).
