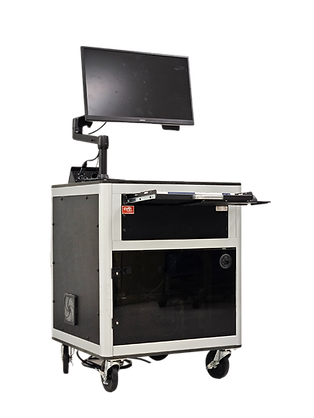

BatteryFlex
A FASTER. More EFFICIENT way to test your batteries.
BatteryFlex is a platform for evaluation and characterization of a wide range of battery cells and battery packs used in medical devices.
BatteryFlex relies on instrumentation in a PXI chassis platform, which allows for the addition of unlimited input or output signals, controls, or measurements. Combined with user-made sequence scripts and playback of real-world simulated load scenarios, the capabilities of BatteryFlex are defined by you.
• Evaluate or compare one or more products
• Generate or reproduce datasheet contents
• Playback charge/discharge/usage scenarios
• Long-Term Life Test
• Accelerated Life Test
• Any other application, defined by User Scripts

STANDARD FEATURES
STANDARD FEATURES
STANDARD INSTRUMENTS
STANDARD MEASUREMENT & TEST ACTIVITY
-
High-Resolution, High-Speed Measurements
-
PXI Platform
-
Playback and Record Load Scenarios
-
Data Logging, Analysis, and Storage
-
Output to any format report or datasheet
-
Thermal Monitoring and Measurement
-
Safety Interlocks and shutdown
-
4-Quadrant SMU (±60V, ±3A, 100fA Meas)
-
7.5 Digit Multimeter (±3A, 1.8MS/s)
-
Thermocouple or RTD Measurement
-
Serial, CAN, I2C, SPI communication
​PXI Modular Architecture provides unlimited instruments, channels, and 3rd party devices available.
-
Open Circuit Voltage (OCV), State of Charge
-
Charge Discharge Scenarios and Load Simulation
-
Power Cycle Test (PCT)
-
Capacity (Static, Script, Pattern/Pulse)
-
Leakage (FCT)
-
High-Frequency EIS (2MHz)
-
DC Internal Resistance (DCIR)
-
AC Internal Resistance (ACIR)


BatteryFlex
SPECIFICATIONS
OPTIONAL FEATURES
Accuracy (at 23° C ± 5° C)
-
Thermal Chamber Integration
-
2D Color Machine Vision and IR Thermal Imaging
-
Additional batteries and packs tested in batch or parallel test mode
-
Customizable User Interface
Digital Multimeter (NI PXIe-4081)
Accuracy
7 1/2 Digits
Voltage
± 1000 V
Current
± 3 A
Speed
1.8 MS/s
Source Measurement (NI PXIe-4139)
Number of SMU Channels
1
Voltage Range
± 60 V
Current Range DC
± 3 A

Pulsed Current Range
± 10 A
Current Sensitivity
100 fA to 1µA
Max DC Source Power
40 W
Max DC Sink Power
40 W
Setting Time (Current)
<200 µs to <1100 ms
Maximum AC Voltage
7.07 V RMS
Maximum AC Current
70.7 mA RMS
Chassis (NI PXIe-1092)
Number of SMU Channels
1
Voltage Range
± 60 V
Current Range DC
± 3 A
Pulsed Current Range
± 10 A
Current Sensitivity
100 fA to 1µA
