Cyth Systems

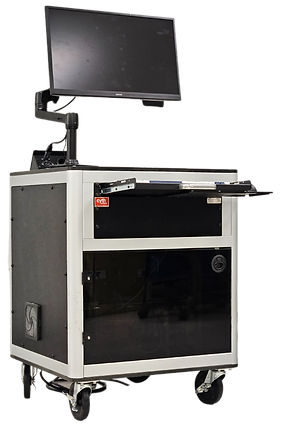

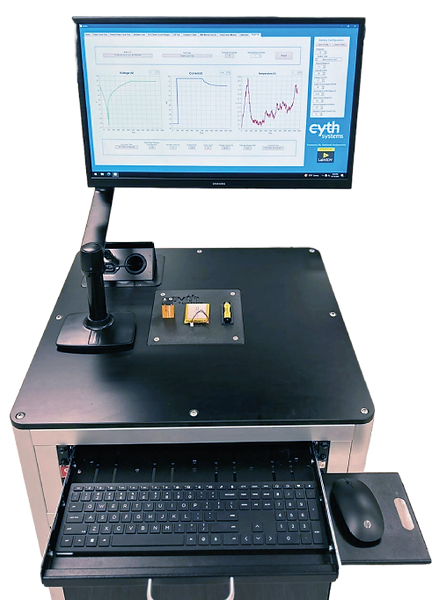

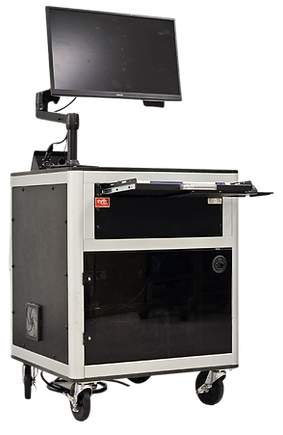

BatteryFlex

A FASTER.  More EFFICIENT way to test your batteries.

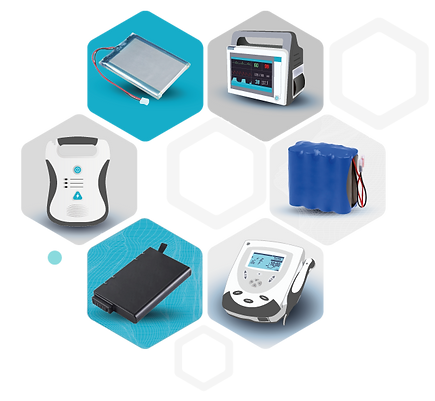

BatteryFlex is a platform for evaluation and characterization of a wide range of battery cells and battery packs used in medical devices.


BatteryFlex relies on instrumentation in a PXI chassis platform, which allows for the addition of unlimited input or output signals, controls, or measurements. Combined with user-made sequence scripts and playback of real-world simulated load scenarios, the capabilities of BatteryFlex are defined by you.

•    Evaluate or compare one or more products
•    Generate or reproduce datasheet contents
•    Playback charge/discharge/usage scenarios
•    Long-Term Life Test
•    Accelerated Life Test
•    Any other application, defined by User Scripts

STANDARD FEATURES

STANDARD FEATURES

STANDARD INSTRUMENTS

STANDARD MEASUREMENT & TEST ACTIVITY

  • High-Resolution, High-Speed Measurements

  • PXI Platform

  • Playback and Record Load Scenarios

  • Data Logging, Analysis, and Storage

  • Output to any format report or datasheet

  • Thermal Monitoring and Measurement

  • Safety Interlocks and shutdown

  • 4-Quadrant SMU (±60V, ±3A, 100fA Meas)

  • 7.5 Digit Multimeter (±3A, 1.8MS/s)

  • Thermocouple or RTD Measurement

  • Serial, CAN, I2C, SPI communication

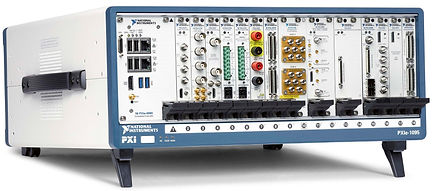

​PXI Modular Architecture provides unlimited instruments, channels, and 3rd party devices available.

  • Open Circuit Voltage (OCV), State of Charge

  • Charge Discharge Scenarios and Load Simulation

  • Power Cycle Test (PCT)

  • Capacity (Static, Script, Pattern/Pulse)

  • Leakage (FCT)

  • High-Frequency EIS (2MHz)

  • DC Internal Resistance (DCIR)

  • AC Internal Resistance (ACIR)

SPECIFICATIONS

OPTIONAL FEATURES

Accuracy (at 23° C ± 5° C)

  • Thermal Chamber Integration

  • 2D Color Machine Vision and IR Thermal Imaging

  • Additional batteries and packs tested in batch or parallel test mode

  • Customizable User Interface

Digital Multimeter (NI PXIe-4081)

Accuracy

7 1/2 Digits

Voltage

± 1000 V

Current

± 3 A

Speed

1.8 MS/s

Source Measurement (NI PXIe-4139)

Number of SMU Channels

1

Voltage Range

± 60 V

Current Range DC

± 3 A

Pulsed Current Range

± 10 A

Current Sensitivity

100 fA to 1µA

Max DC Source Power

40 W

Max DC Sink Power

40 W

Setting Time (Current)

<200 µs to <1100 ms

Maximum AC Voltage

7.07 V RMS

Maximum AC Current

70.7 mA RMS

Chassis (NI PXIe-1092)

Number of SMU Channels

1

Voltage Range

± 60 V

Current Range DC

± 3 A

Pulsed Current Range

± 10 A

Current Sensitivity

100 fA to 1µA
