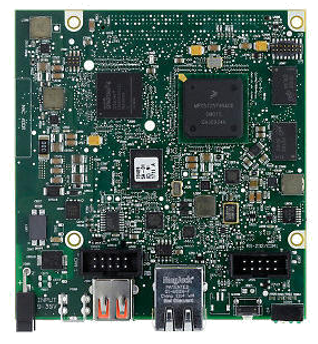

NI Single Board RIO (SbRIO)
Single board computer for control and monitoring.
National Instruments (NI) Single-Board Reconfigurable Input/Output (SbRIO) is an embedded hardware platform designed for control, data acquisition, and monitoring applications. It's part of the NI RIO (Reconfigurable I/O) family of products and is commonly used in industrial automation, control systems, and various test and measurement applications.
​

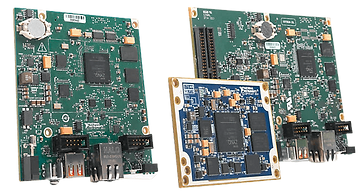

The RIO platform is also available in the Single-Board RIO (sbRIO) or System-On-Module (SOM) form factor. These two controllers can perform any task by the development of Mezzanine Boards to customize the I/O as needed for a project.
​
Yet to make that process simpler, Cyth also offers Circaflex - a family of ready-to-use mezzanine boards with swappable I/O modules to help prototype all the I/O for a project without any PCB development. After successful prototyping, Circaflex boards can be used as-is, or customized further to optimize connectors, packaging, or size.
.png)
NI SbRIO Processor
SbRIO systems usually include an embedded processor (such as an ARM processor) to handle tasks that may not require the real-time capabilities of the FPGA. This processor is often used for tasks like communication, data logging, and supervisory control.
NI SbRIO FPGA
The core of the SbRIO platform is an FPGA, which is a reconfigurable hardware device. This FPGA allows you to implement custom real-time processing, control, and signal processing tasks tailored to your specific application.
NI SbRIO I/O Interfaces

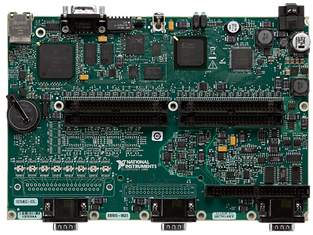

SbRIO boards have a variety of input and output interfaces, including digital and analog inputs and outputs, communication ports (e.g., Ethernet, USB), and specialized interfaces for specific sensors or signals.
NI SbRIO Real-Time Operating System
SbRIO systems typically run a real-time operating system (RTOS) that ensures precise timing and low-latency performance, making them suitable for control and data acquisition applications with strict timing requirements.
LABVIEW APPLICATIONS
What Can I Do
with LabVIEW?
For the past 35 years, LabVIEW has been engineers’ tool of choice for developing automated test systems. From performing a simple voltage measurement to advancing space missions, discover how LabVIEW can advance your next project:
NI's Authorized Distributor
& Integration Partner
We've been named NI's Premier Integration and Distribution Partner for Embedded and Electronics Systems.
See the thousands of systems we've built
We can show you examples of the systems we've deployed that are most similar to your needs. Contact us to schedule a meeting.
Meet with our engineers to start planning your system
The market won't wait, and neither should you. Contact us to get started.
